elab2ARC

elab2ARC is a browser-based tool for converting eLabFTW experiments and resources into the Annotated Research Context (ARC) format. It retrieves protocols, administrative metadata and attachments via the eLabFTW API, organises them into an ISA-compliant ARC and pushes the result to the DataHUB or another Git host.

• Tool: nfdi4plants.org/elab2arc
• Source code: github.com/nfdi4plants/elab2arc (GPL-3.0)
• Try it without registration: elab2arc-review.dataplan.top provides one-click access with demo eLabFTW and DataHUB accounts
• Publication: Zander S, Zhou X et al. (2026) elab2ARC: A browser-based workspace for converting free-text protocols into rich FAIR digital objects. bioRxiv. doi:10.64898/2026.05.14.724833

Why is elab2ARC needed?

Many researchers rely on electronic lab notebooks (ELNs) to document their experiments due to their flexibility in handling free-form text and supporting data files up to 100 MB. However, when metadata standardization becomes necessary or when raw data files exceed the file size limit, other research data standards, such as Annotated Research Context (ARC), may be required.

ARC offers robust metadata annotation tools and customizable templates that help standardize the unstructured content typically found in ELNs. Additionally, ARC supports large files up to 10 GB, making it an excellent complement to ELNs like eLabFTW, which are not designed to handle raw data storage or larger file sizes.

Manually transferring metadata from ELNs to ARC can be both error-prone and time-consuming. elab2ARC automates this step. It is designed to be used when a project (or a part of it) is completed: you keep documenting in eLabFTW as usual and convert the finished entries into an ARC with a few clicks, without changing your daily lab routine.

Features of elab2ARC

• Experiments and resources: converts eLabFTW experiments as well as resources (e.g. samples, reagents, equipment).
• ARC conversion: each entry becomes an assay (or study) with protocol, dataset and ISA metadata.
• Runs in your browser: retrieval, conversion and Git operations happen client-side; no installation is needed.
• Optional LLM-assisted annotation: a large language model can turn free-text protocols into ISA annotation tables (samples, process steps, parameters) as an editable draft.
• Flexible targets: pushes to the DataHUB by default; custom GitLab instances and GitHub are also supported.
• Version history: every conversion is a Git commit, so re-converting an entry never silently overwrites earlier states.
• Other input formats: besides eLabFTW, HTML or Markdown files (also several files in a ZIP archive) can be used as input via the advanced settings.
• Multi-instance support: works with any eLabFTW instance you have access to.
• Self-hosting: a Dockerfile and docker-compose configuration are available in the repository.

Setting up Tokens for elab2ARC

Create a Personal Access Token in DataHUB

Note

This guide shows you how to generate a Personal Access Token (PAT).
A PAT can grant access to all ARCs of one user.

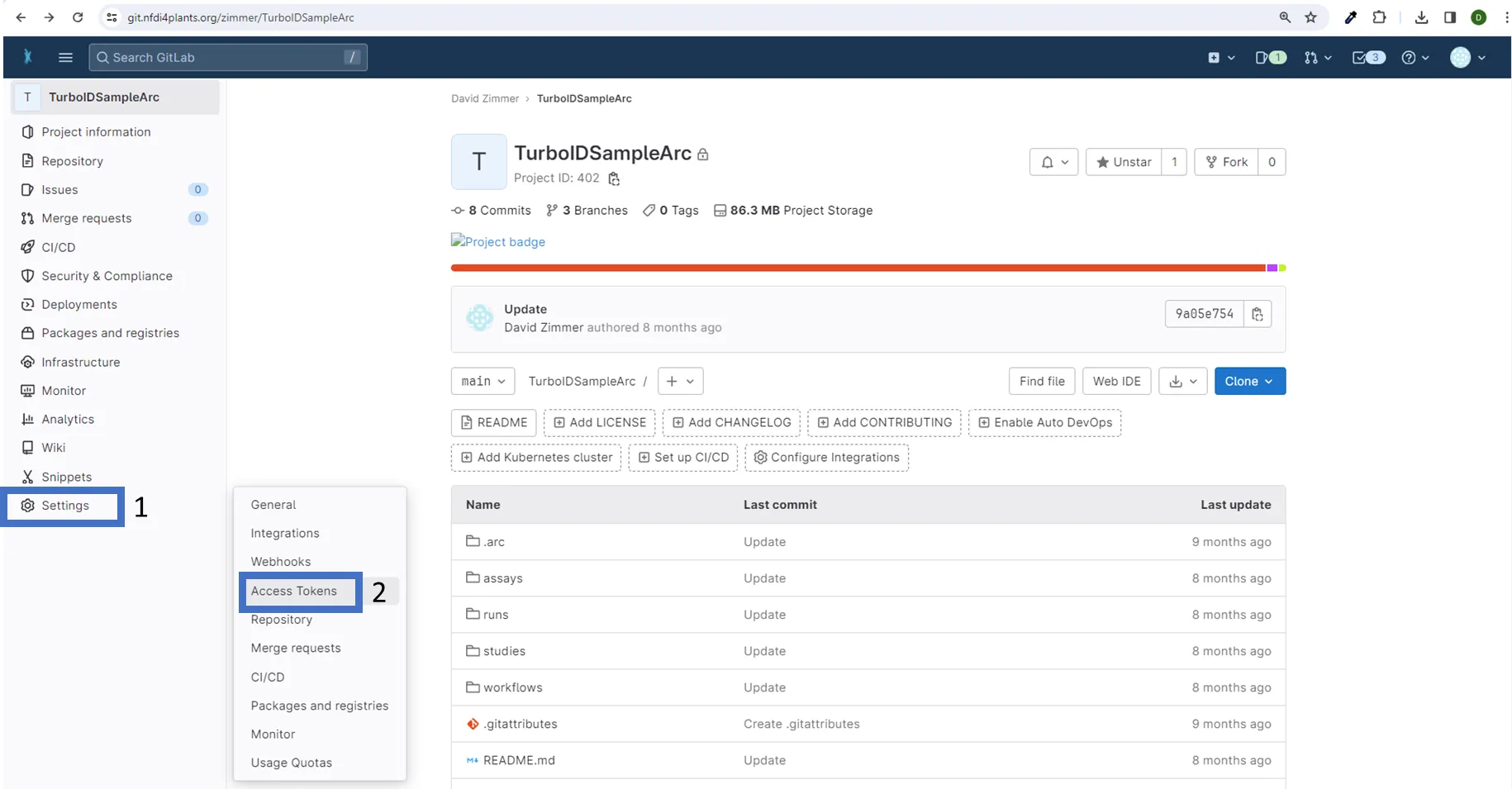

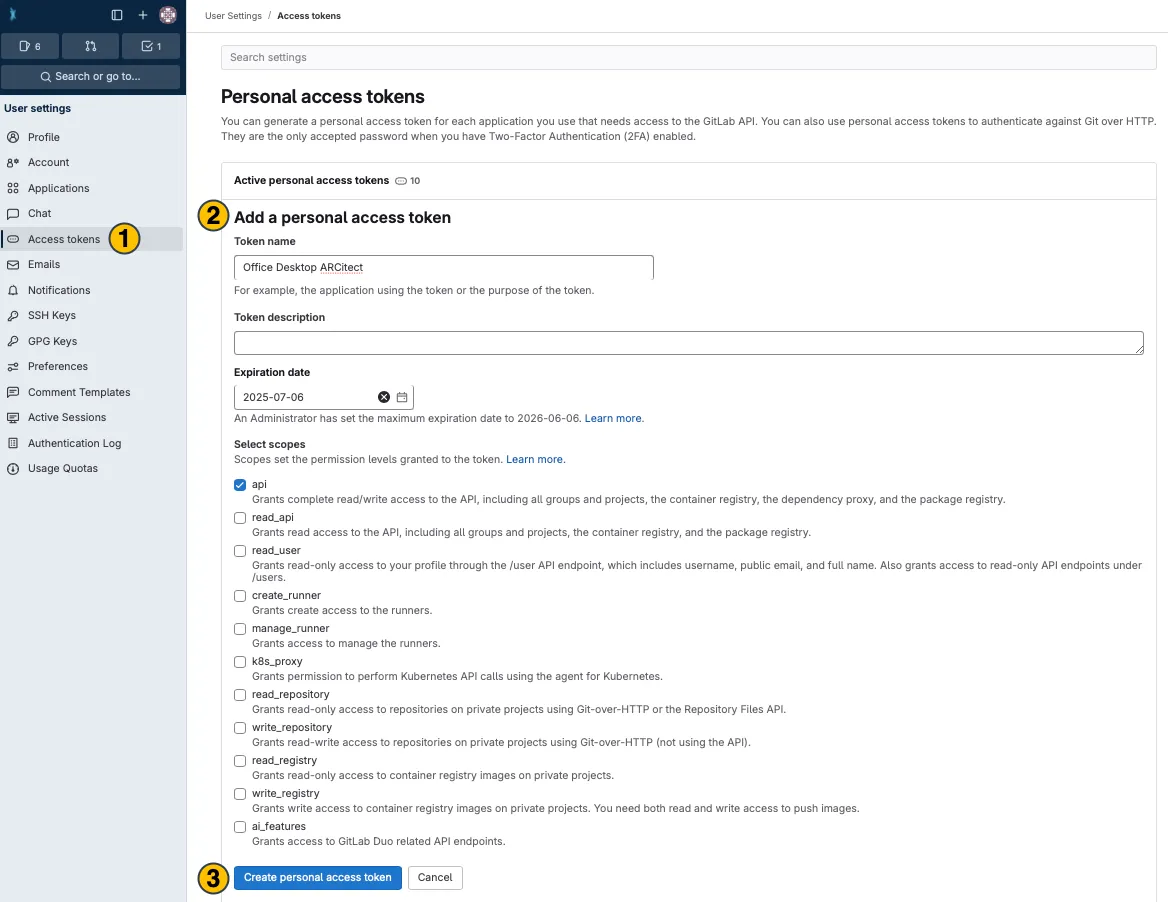

1. Sign in to the DataHUB

2. Navigate to your user settings

3. Open the Access Tokens settings in the sidebar (1)

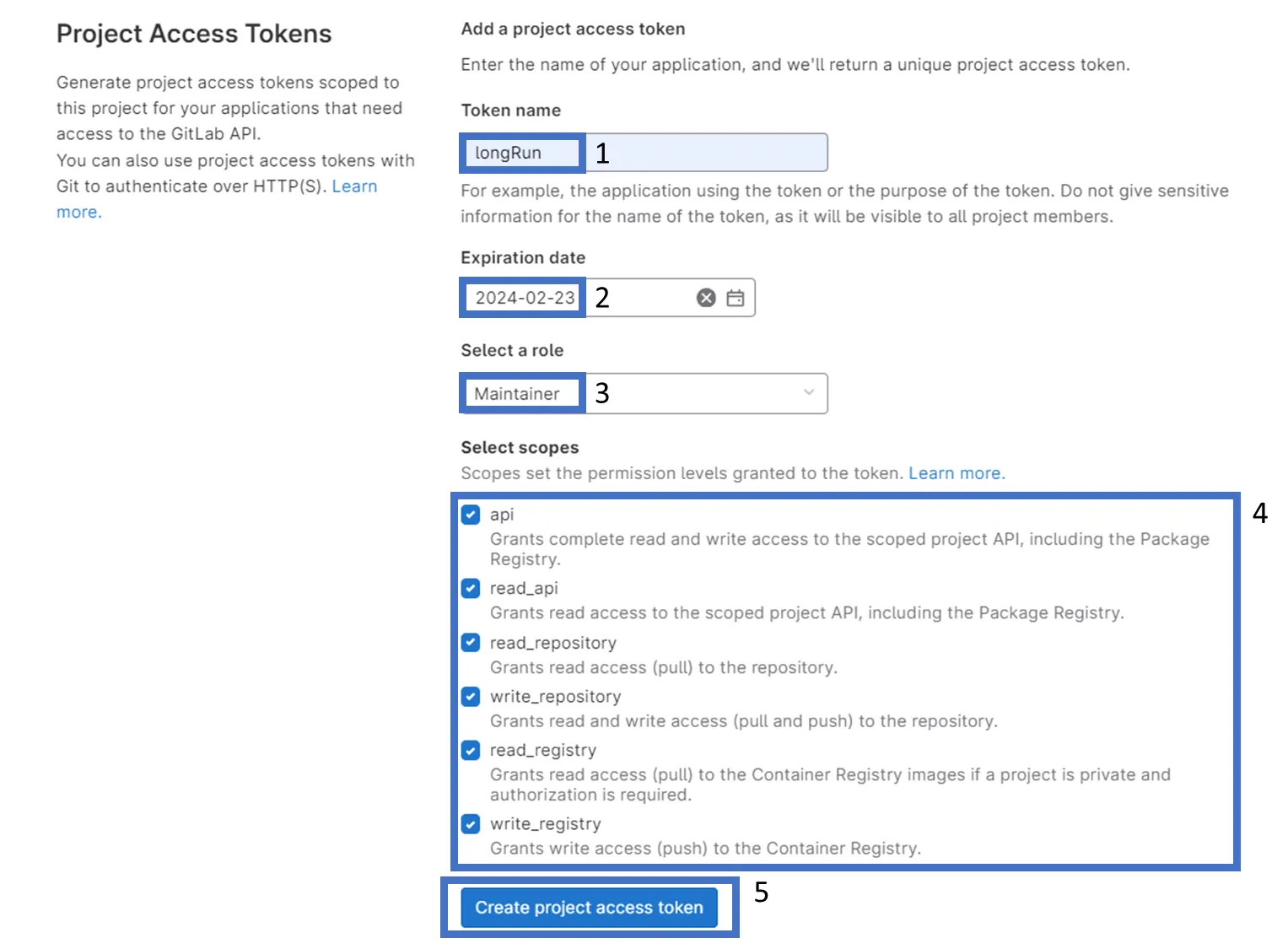

4. Enter or adapt the required token information (2) (more about token information here)

5. Click Create personal access token (3)

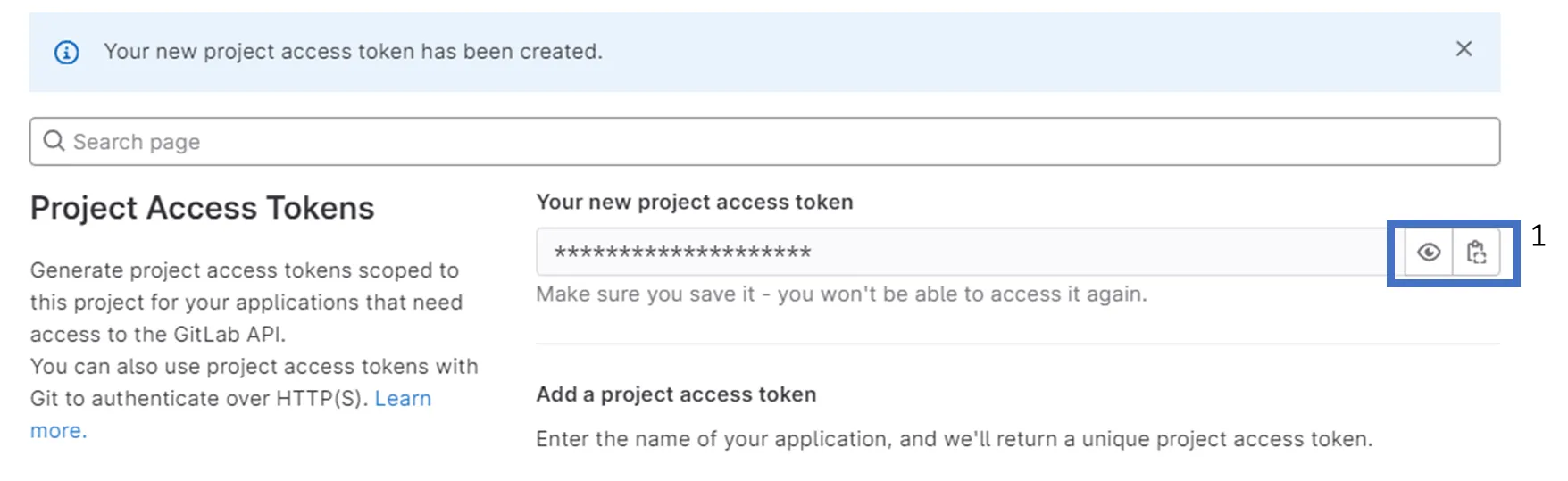

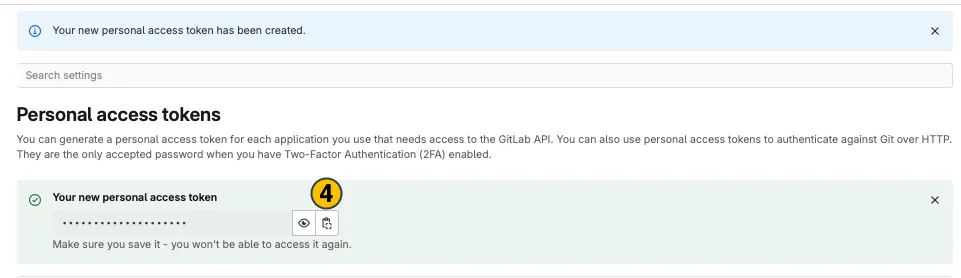

6. Your new personal access token appears on top. Copy (4) and use it in the desired application.



Tip

If you are already logged into the DataHUB in the same browser, elab2ARC can fetch the token for you via Get a token.

Create an eLabFTW API key

1. Login to your eLabFTW instance

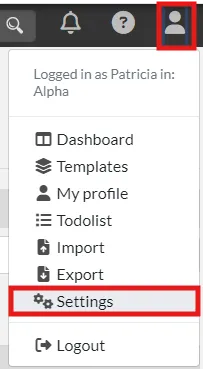

2. Navigate to User Settings

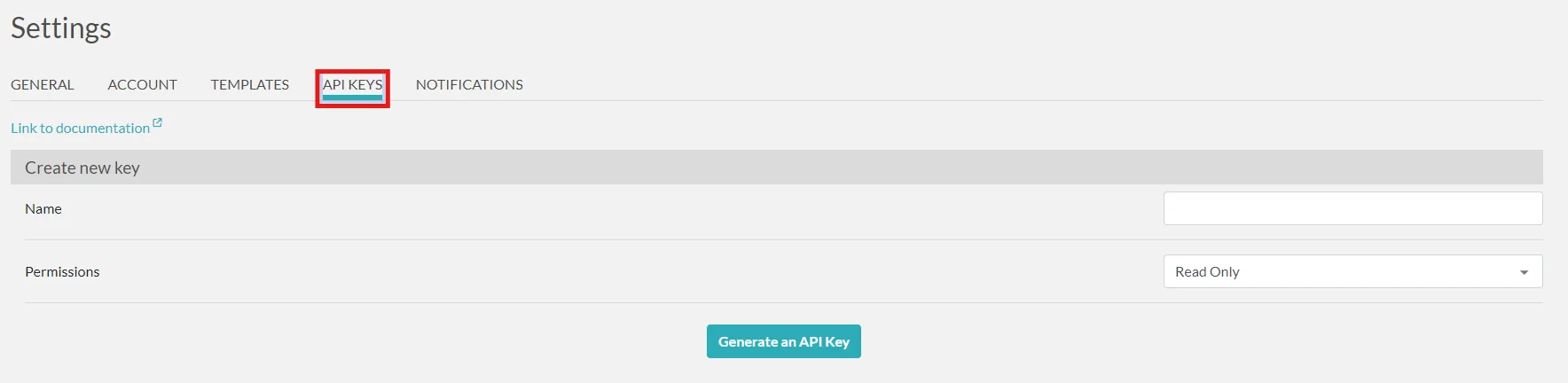

3. Navigate to API KEYS Tab. Enter a name and a Read Only permissions

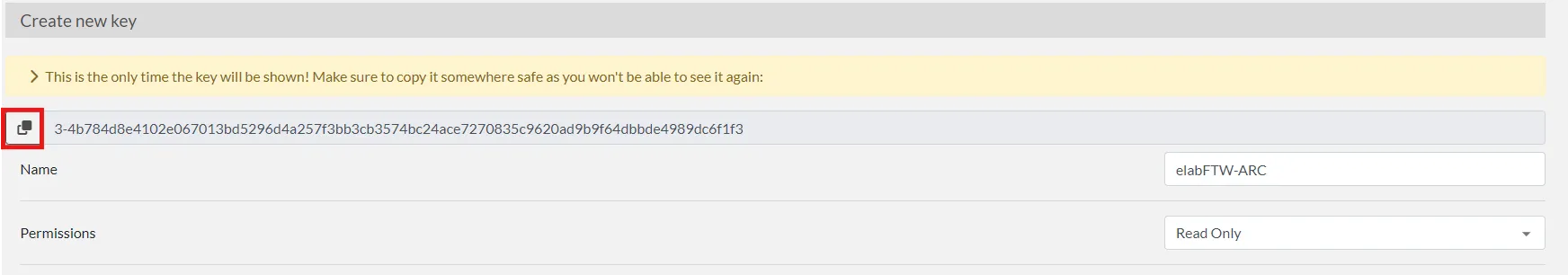

4. Save the key securely, as it will only be displayed once. Treat it like a password, as it grants access to eLabFTW.

How to use elab2ARC

Open the tool: elab2ARC.

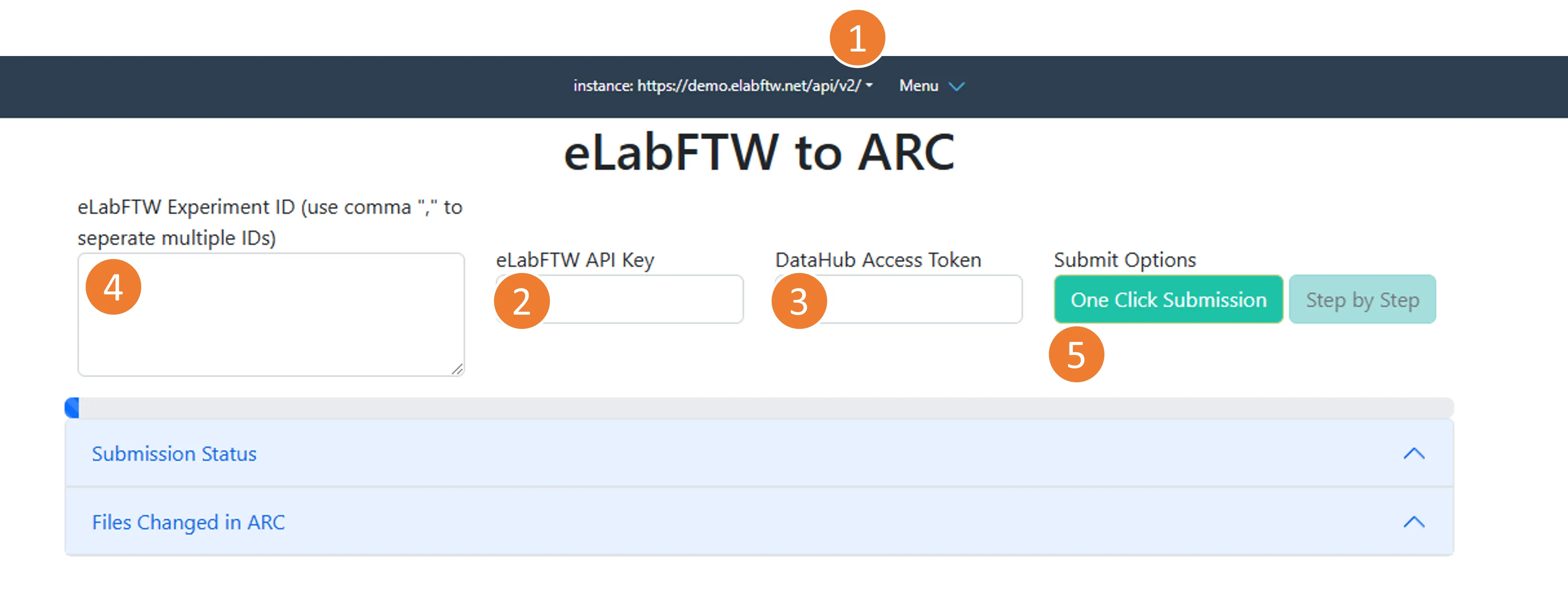

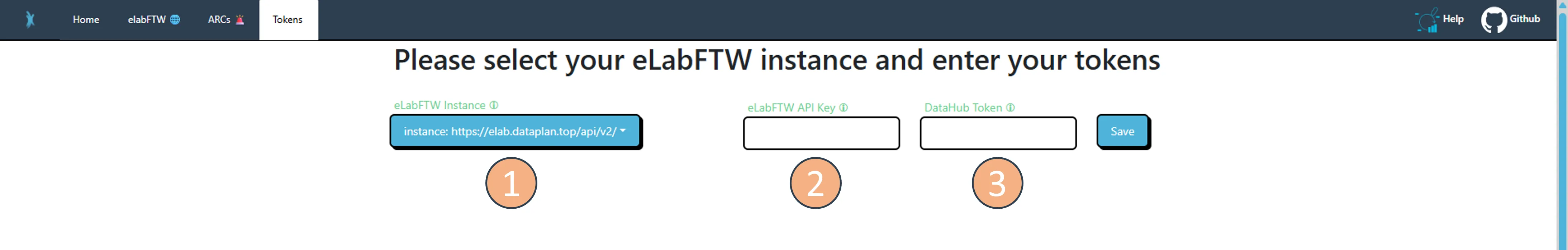

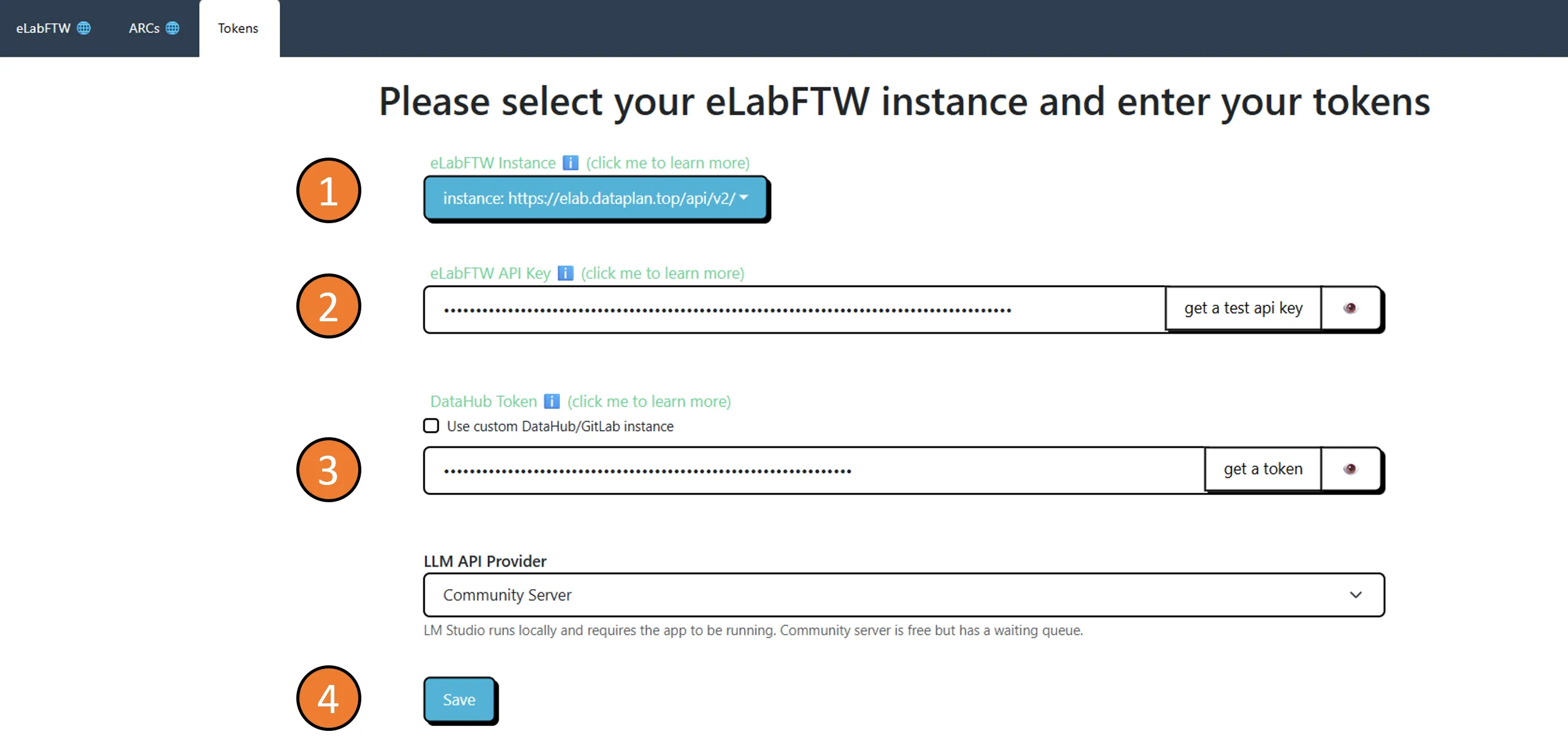

1. Configure instance and tokens

In the Tokens tab:

• Select your eLabFTW instance from the drop-down list or add your own [1].
• Paste your eLabFTW API key [2]. For the demo instance, get a test api key fills in a key automatically.
• Paste your DataHUB token or click get a token [3]. To use another GitLab server or GitHub, tick Use custom DataHub/GitLab instance.
• (Optional) Choose an LLM API Provider (see LLM-assisted annotation).
• Click Save [4].

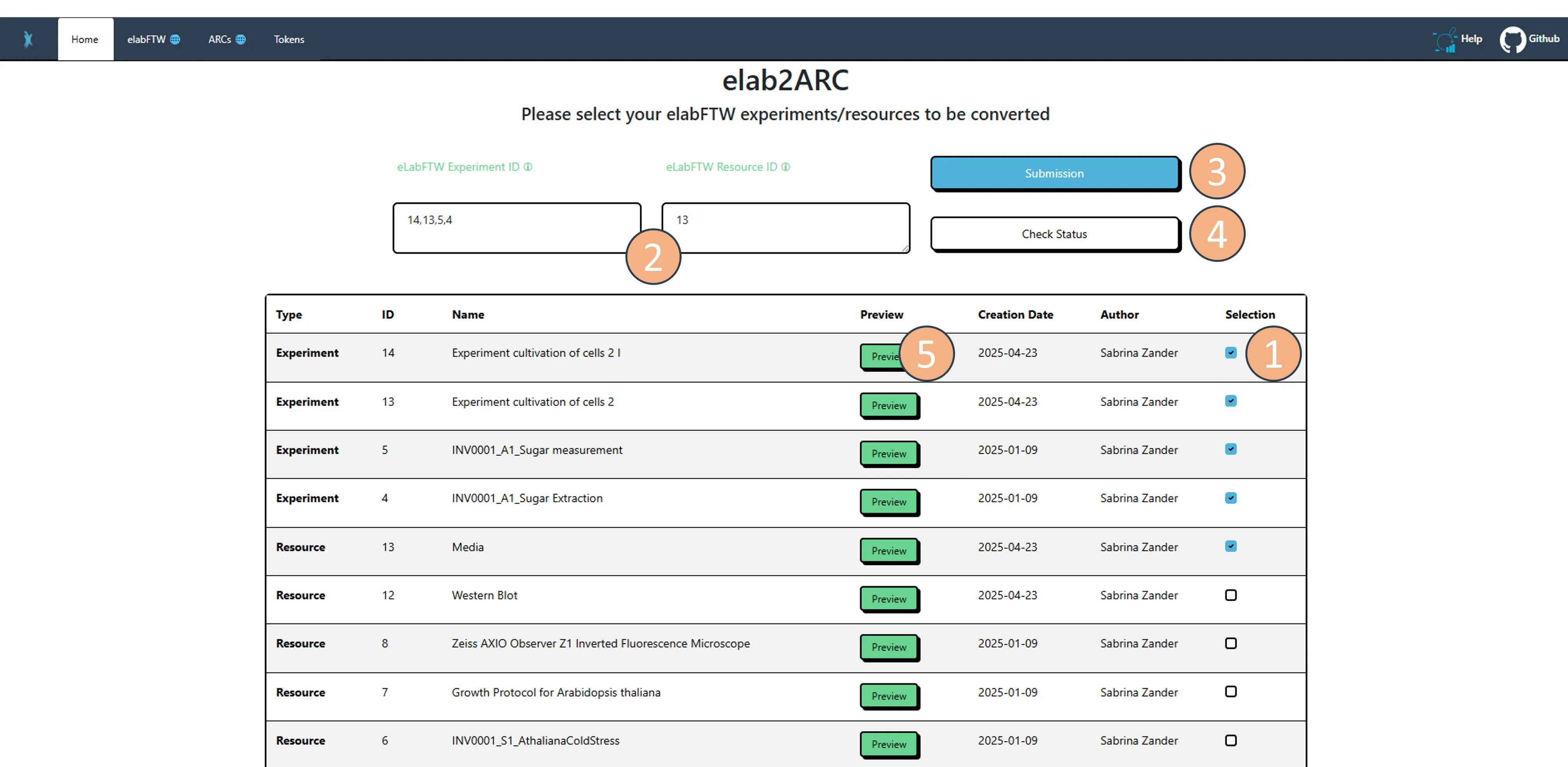

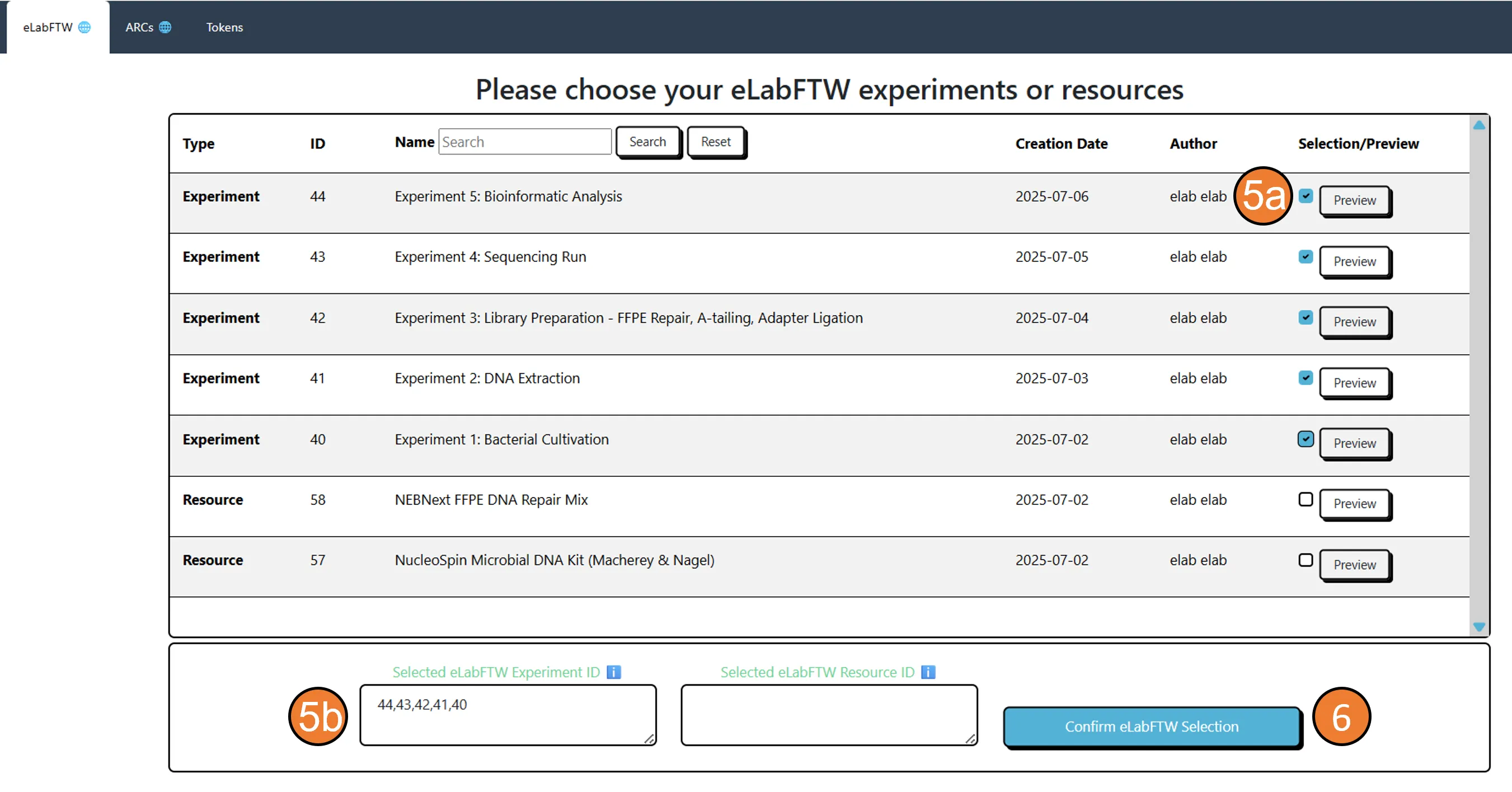

2. Select eLabFTW experiments and resources

In the eLabFTW tab, all experiments and resources you have access to are listed. Use the search field to filter.

• Click Preview to check an entry (main text, metadata, linked entries, attachments) before converting it.
• Tick the entries you want to convert [5a]. Their IDs are added to the selection fields [5b]; you can also enter IDs there directly, separated by commas.
• Click Confirm eLabFTW Selection [6].

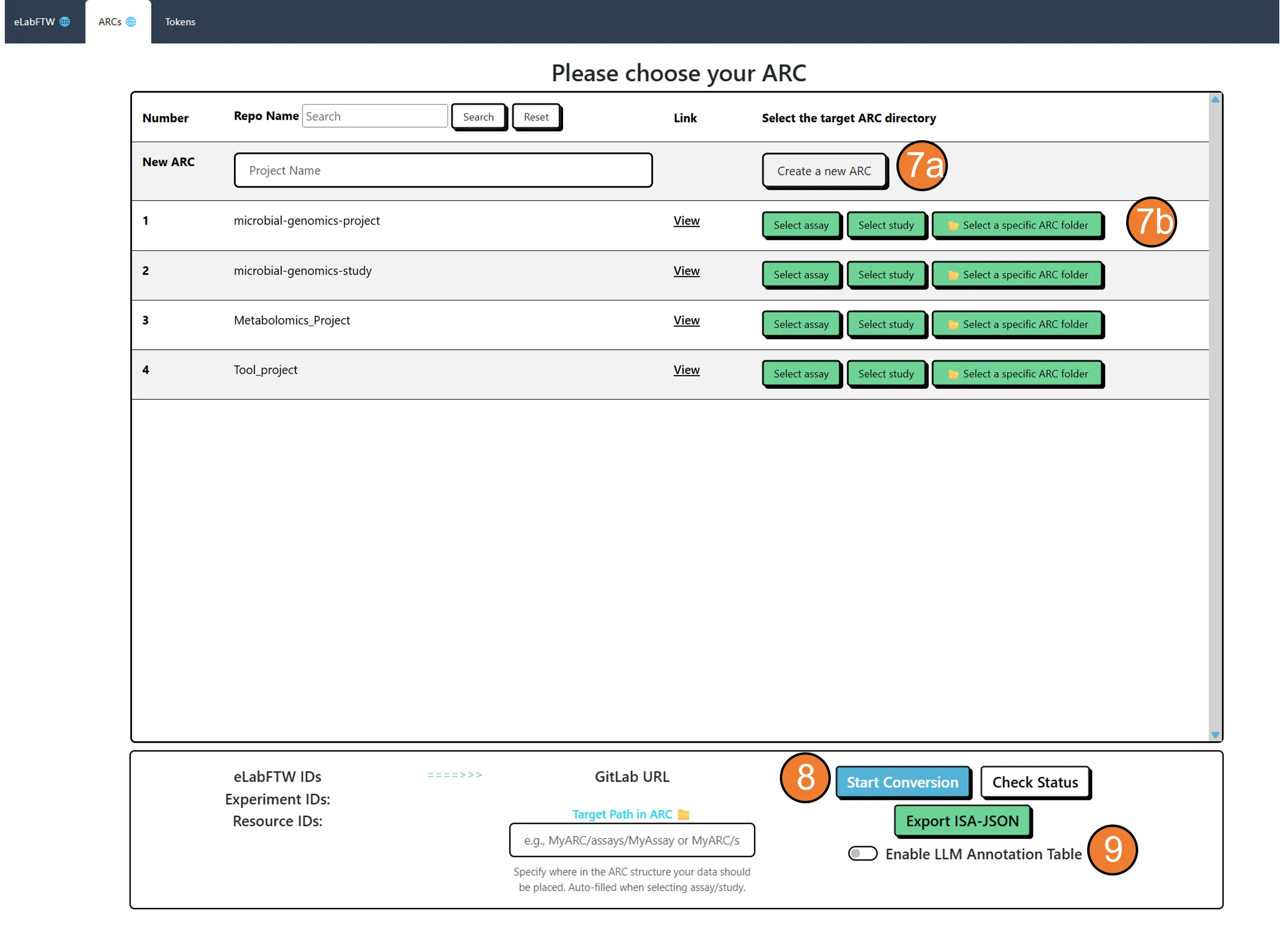

3. Select the target ARC and start the conversion

In the ARCs tab:

• Either enter a project name and click Create a new ARC [7a], or choose an existing ARC and click Select assay, Select study or Select a specific ARC folder [7b].
• Check the Target Path in ARC (filled in automatically when selecting an assay or study).
• (Optional) Switch on Enable LLM Annotation Table [9]. An Edit Prompt button then appears to adjust the prompt.
• Click Start Conversion [8]. Check Status shows the progress.
• (Optional) Use Export ISA-JSON to download the metadata as ISA-JSON.

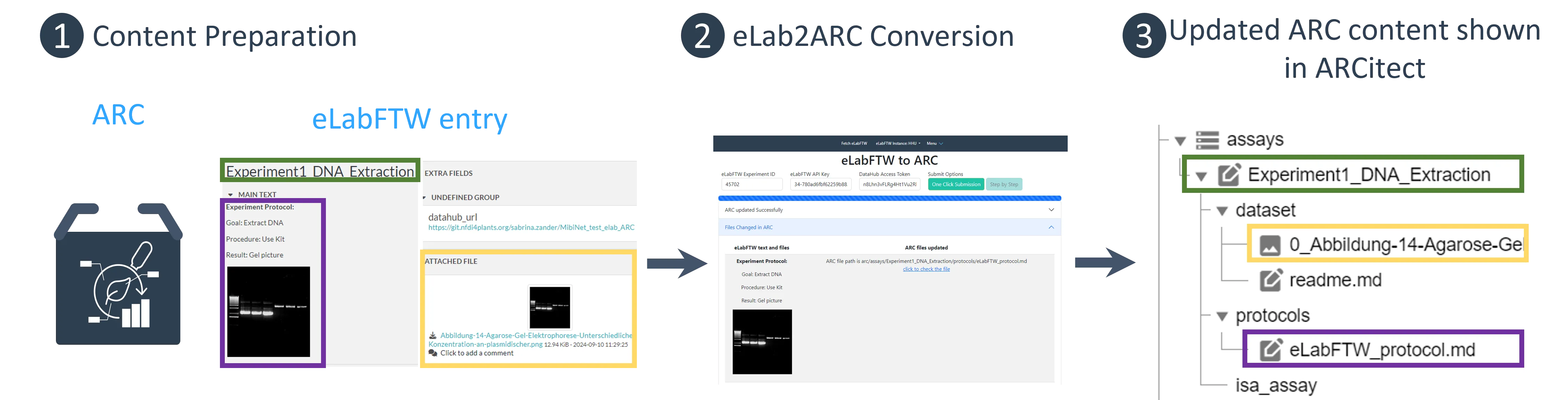

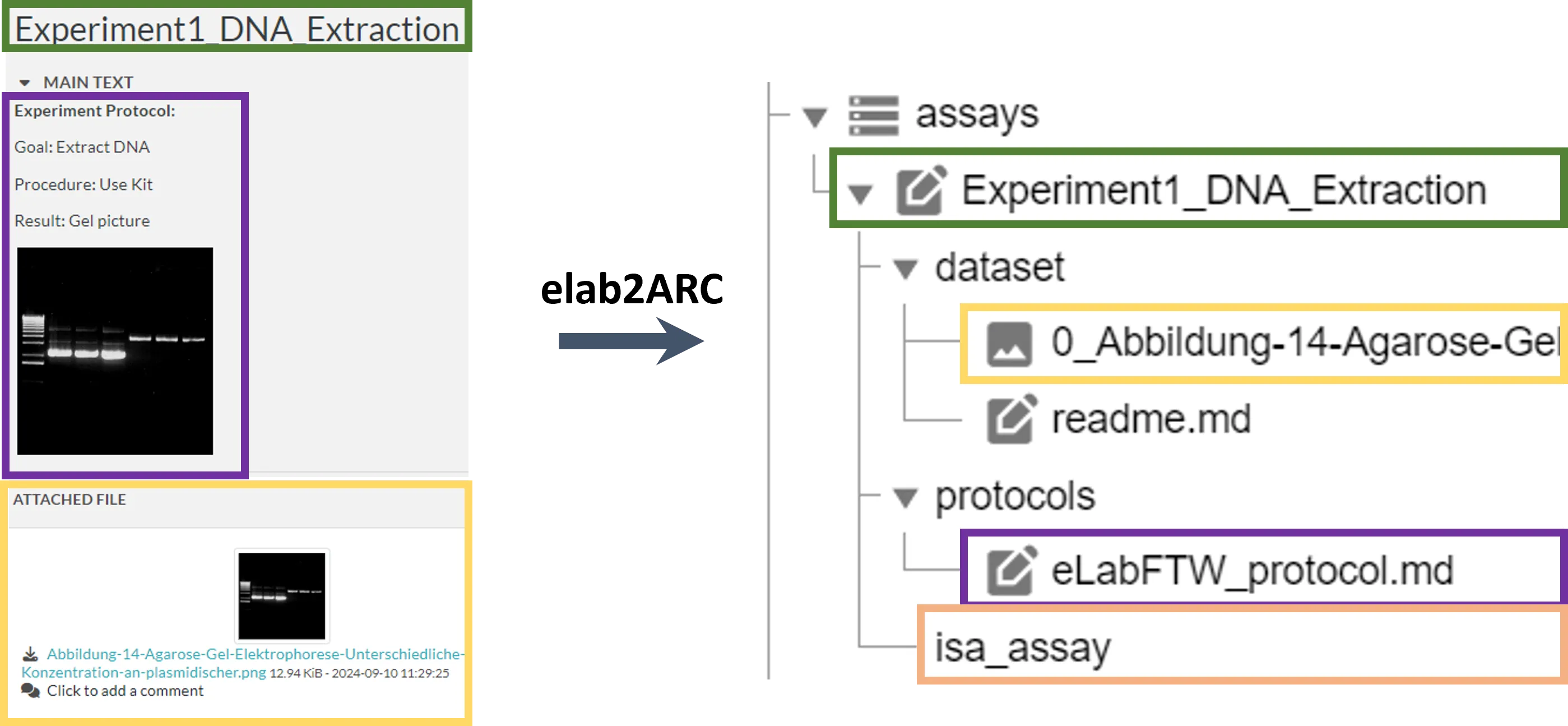

Conversion

The elab2ARC tool will automatically convert your eLabFTW experiments into ARC format:

• create a new assay folder with the eLabFTW experiment title as assay name (grey, dashed)
• create the assay folder structure (dataset/protocols/isa.assay)
• convert the experiment main text into a Markdown file and store it in the protocols folder (blue)
• add all attachments of the eLabFTW experiment to the dataset folder (orange), handled via Git LFS
• enter the administrative metadata of the eLabFTW entry (e.g. ID, dates, author name/email/affiliation) into the Assay sheet of the isa.assay file (green)
• with the LLM option: extract samples, process steps and parameters from the main text into additional annotation sheets of the isa.assay file (blue, bottom)

The ARC is then committed and pushed to the selected repository. From there, you can add large raw data or analysis results, enrich the metadata, work on it with collaborators and finally publish it with a DOI.

Re-converting entries

You can update an eLabFTW entry and convert it again into the same ARC:

• Every conversion is stored as a new Git commit. The Version History panel shows what changed (line by line for Markdown and JSON files; for Excel files only that they changed).
• Protocol files and attachments are regenerated from the current eLabFTW entry on each run.
• LLM-generated annotation tables are kept if the LLM step is not run again.

Caution

Make changes to protocols in eLabFTW, not directly in the ARC. Manual edits to protocol files in the ARC are overwritten by the next conversion of the same entry.

Optional: LLM-assisted annotation

When enabled, elab2ARC sends the free-text protocol to a large language model, which extracts samples, process steps and parameters into ISA annotation tables.

Provider	Where does the protocol text go?
LM Studio / Ollama (local)	stays on your computer (the application must be running)
Community server / remote API / custom endpoint	is sent to the selected service

• Before protocol text is sent to a non-local provider, elab2ARC asks for your explicit consent.
• The extraction prompt can be edited via Edit Prompt.
• The quality of the result depends on the model and on how detailed the ELN entry is. elab2ARC only extracts what is written down.

Caution

For sensitive or unpublished data, use a local model (LM Studio or Ollama). Always review LLM-generated tables before publishing your ARC.

Troubleshooting

• “LLM extraction failed …”: the message names the reason (e.g. missing key, empty entry content, no parsable model output). The conversion continues without LLM tables.
• Empty or incomplete eLabFTW entries are converted without error; the assay then contains only the available metadata.
• Push fails: check that your DataHUB/GitLab/GitHub token is valid and has write access to the target repository.

Bugs and feature requests: GitHub issues
